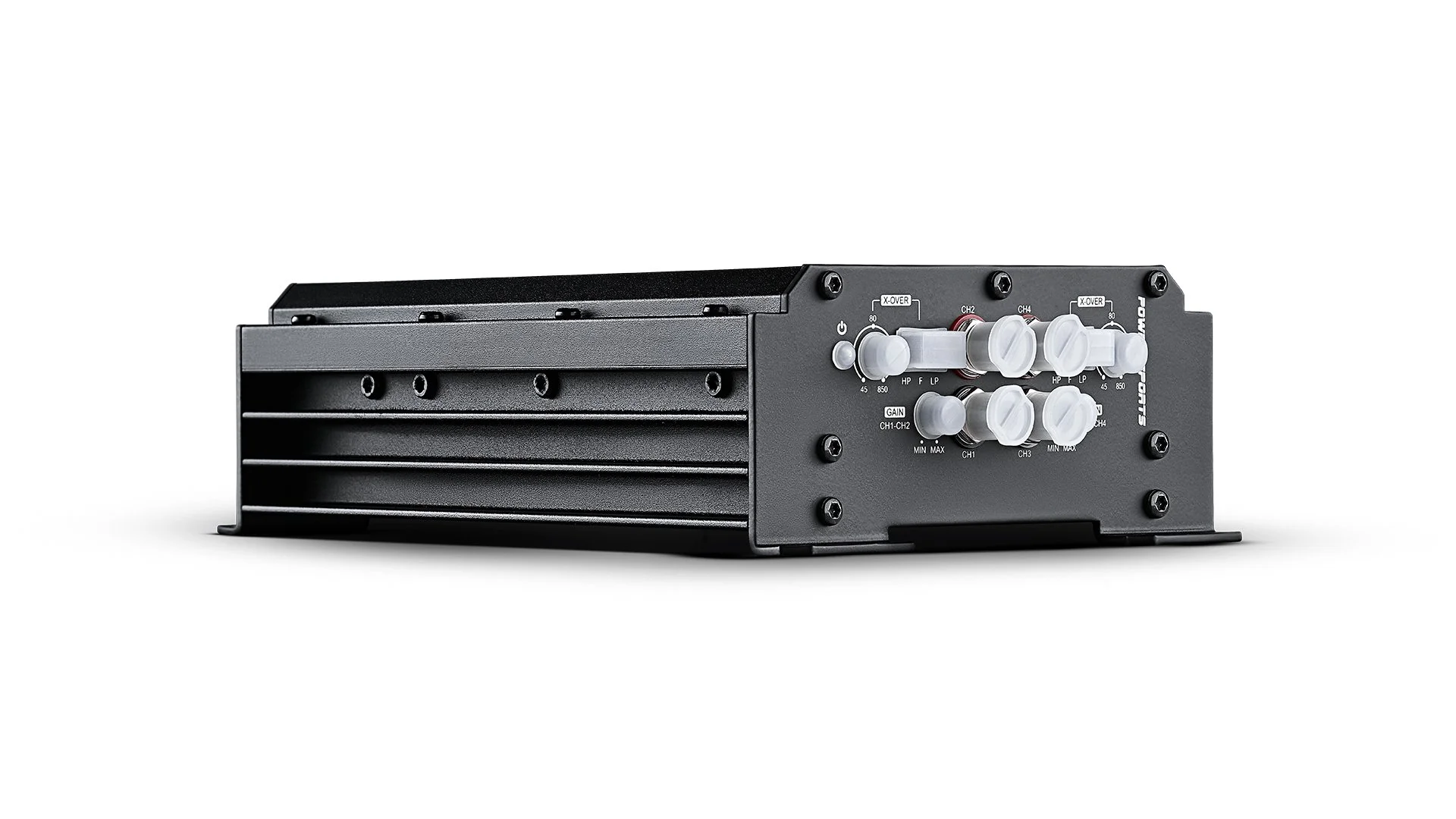

SD 2000.4 EVO PS Amplifier
2000.4 EVOPS – 2Ω
Power @ 4Ω: 4 X 218 WRMS
Power @ 2Ω: 4 X 330 WRMS
Power @ 1Ω: 4 X 500 WRMS
Bridge Power @ 4Ω: 2 X 660 WRMS
Bridge Power @ 2Ω: 2 X 1000 WRMS
Operating Voltage: 8V – 16V
Current Draw (Music): 85 A
Current Draw (Max): 171 A
Recommended Fuse (Music): 100 A
Total Efficiency: 81%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 22kHz
SNR: 90dB
Crossover HPF: 45Hz – 850Hz
Crossover LPF: 45Hz – 850Hz
THD + N (10% Rated Power): 0.1%
Product Dimensions: in
Product Dimensions: cm
2000.4 EVOPS – 4Ω
Power @ 4Ω: 4 X 330 WRMS
Power @ 2Ω: 4 X 500 WRMS
Power @ 1Ω: N/A
Bridge Power @ 4Ω: 2 X 1000 WRMS
Bridge Power @ 2Ω: N/A
Operating Voltage: 8V – 16V
Current Draw (Music): 85 A
Current Draw (Max): 171 A
Recommended Fuse (Music): 90 A
Total Efficiency: 81%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 22kHz
SNR: 90dB
Crossover HPF: 45Hz – 850Hz
Crossover LPF: 45Hz – 850Hz
THD + N (10% Rated Power): 0.1%
2000.4 EVOPS – 2Ω
Power @ 4Ω: 4 X 218 WRMS
Power @ 2Ω: 4 X 330 WRMS
Power @ 1Ω: 4 X 500 WRMS
Bridge Power @ 4Ω: 2 X 660 WRMS
Bridge Power @ 2Ω: 2 X 1000 WRMS
Operating Voltage: 8V – 16V
Current Draw (Music): 85 A
Current Draw (Max): 171 A
Recommended Fuse (Music): 100 A
Total Efficiency: 81%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 22kHz
SNR: 90dB
Crossover HPF: 45Hz – 850Hz
Crossover LPF: 45Hz – 850Hz
THD + N (10% Rated Power): 0.1%
Product Dimensions: in
Product Dimensions: cm
2000.4 EVOPS – 4Ω
Power @ 4Ω: 4 X 330 WRMS
Power @ 2Ω: 4 X 500 WRMS
Power @ 1Ω: N/A
Bridge Power @ 4Ω: 2 X 1000 WRMS
Bridge Power @ 2Ω: N/A
Operating Voltage: 8V – 16V
Current Draw (Music): 85 A
Current Draw (Max): 171 A
Recommended Fuse (Music): 90 A
Total Efficiency: 81%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 22kHz
SNR: 90dB
Crossover HPF: 45Hz – 850Hz
Crossover LPF: 45Hz – 850Hz
THD + N (10% Rated Power): 0.1%
2000.4 EVOPS – 2Ω
Power @ 4Ω: 4 X 218 WRMS
Power @ 2Ω: 4 X 330 WRMS
Power @ 1Ω: 4 X 500 WRMS
Bridge Power @ 4Ω: 2 X 660 WRMS
Bridge Power @ 2Ω: 2 X 1000 WRMS
Operating Voltage: 8V – 16V
Current Draw (Music): 85 A
Current Draw (Max): 171 A
Recommended Fuse (Music): 100 A
Total Efficiency: 81%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 22kHz
SNR: 90dB
Crossover HPF: 45Hz – 850Hz
Crossover LPF: 45Hz – 850Hz
THD + N (10% Rated Power): 0.1%
Product Dimensions: in
Product Dimensions: cm
2000.4 EVOPS – 4Ω
Power @ 4Ω: 4 X 330 WRMS
Power @ 2Ω: 4 X 500 WRMS
Power @ 1Ω: N/A
Bridge Power @ 4Ω: 2 X 1000 WRMS
Bridge Power @ 2Ω: N/A
Operating Voltage: 8V – 16V
Current Draw (Music): 85 A
Current Draw (Max): 171 A
Recommended Fuse (Music): 90 A
Total Efficiency: 81%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 22kHz
SNR: 90dB
Crossover HPF: 45Hz – 850Hz
Crossover LPF: 45Hz – 850Hz
THD + N (10% Rated Power): 0.1%
